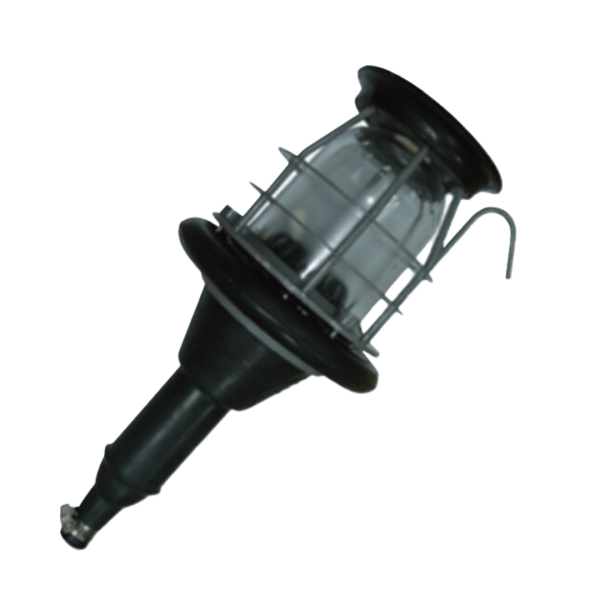

EX4680-Torch Hand Lamp Portable Explosion Proof

ATEX Explosion Proof Portable Hand Lamp
Model : EX-4680
Factory Code : 792174
HS Code : 8536610000

Technical Details:

Ex Mark : II 2G Ex de IIC T4 Gb IP65, II 2D Ex tb IIIC T145°C Db

Type of Protection : “d” Flameproof, “e” Increased safety, ‘tb’ Dust Ignition Protection by Enclosure
Area of Classification (Gases) : Zones 1 and 2, Gas Groups IIA, IIB and IIC
Temp. Classification (Gases) : T4
Area of Classification (Dusts): Zones 21 and 22, Dusts Groups IIIA, IIIB and IIIC
Max. Surface temp.(Dusts) : 145°C
Ambient Temperature : -25 °C~+45°C
Voltage : 24V / 110V / 220V
Watts : Max 100W
Lampshade transmission coefficient : no less than 85%
Lamp Base : E27
Cable connector is no more than: 40 °C while in use
Ingress Protection : IP65
Weight : 2.58KG
Packing : 6pcs / carton, size : 62*39*44cm
The ATEX Explosion Proof Portable Hand Lamp EX-4680 is ATEX approval for use in Zones 1 & 2
explosive atmospheres, and Zones 21 &22 potentially explosive dust atmospheres.
The Steel cage is guard with cast iron locking ring and rubber structure. Both the top and bottom contain
two rubber rings to absorb the expected general impact in industrial use. The user benefits for operating
the portable hand-held lamp include a rubber handle for enhanced grip, a convenient retractable hook
incorporated in the steel guard, through which the hand lamp can be hung.
