HLBH02 Terminal Box Explosion Proof

Terminal Box Explosion Proof

Gratis Ongkir

Bergaransi



info selengkapnya hubungi tim sales kami dan konsultasikan kebutuhan anda ke tim professional engineering kami.

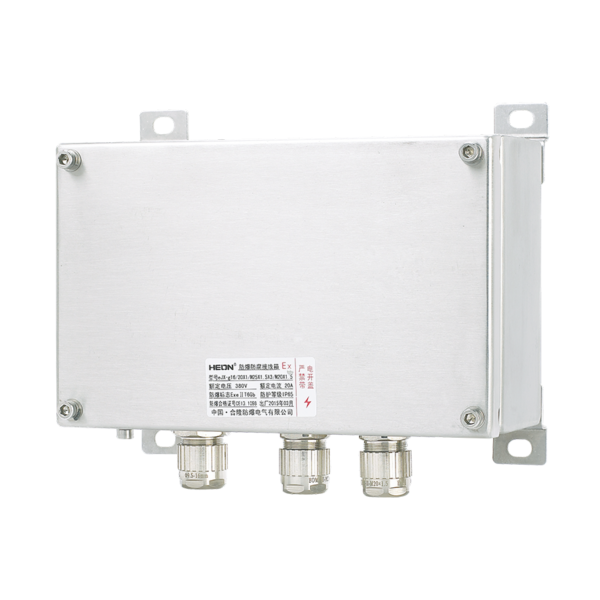

HLBH02 Series Stainless Steel Terminal Box Explosion Proof adalah salah satu produk yang di Jual oleh kami sebagai distributor explosion proof selalau memberikan produk – produk berkualitas dan dapat diandalkan untuk berbagai kebutuhan di sektor industri, pertambangan, maupun area komersil.

FEATURES AND SPECIFICATIONS HLBH02 Terminal Boxes Explosion Proof

  1. Ex II2 G Ex e IIC T6 Gb, Ex II2 G Ex e IIC T5/T4 Gb, Ex II2 D Ex tb IIIC T80*C Db IP66, Ex II2 D Ex Tb IIIC T95*C Db IP66, Ex II2 D Ex Tb IIIC T130*C Db IP66
  2. Zone 1 and Zone 2, Zone 21 and Zone 22, IP66
  3. Use 304, 3161 stainless steel plate, for ekectric installation, such as increased safe box and instinc safe box
  4. The joints of enclosure and cover use silicone rubber seal
  5. The stainless steel exposed fasteners, anti-falling structure
  6. Stainless steel can be installed according to the requirements
  7. Ways of installation : Surface type
  8. Inlet and outlet theread : M16~M110x1,5/G1/2~G4
  9. Rated voltage: Mmax.690 VAC
