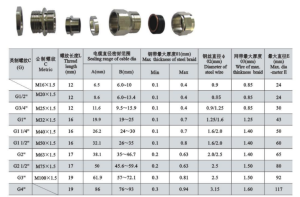

| C (G) | C Metric | Thread length (mm) | A (mm) | B (mm) | Min | Max | 02(mm) Diameter of steel wire | 03(mm) Wire of max, thinkness braid | (mm) Max diameter B |
|---|---|---|---|---|---|---|---|---|---|
| - | M16 x 1.5 | 12 | 6.5 | 6.0~10 | 0.1 | 0.4 | 0.9 | 0.85 | 24 |
| G1/2" | M20 x 1.5 | 12 | 8.6 | 6.0~13.4 | 0.1 | 0.4 | 0.85 | 0.85 | 24 |
| G3/4" | M25 x 1.5 | 12 | 11.6 | 9.5~15.9 | 0.1 | 0.4 | 0.9/1.25 | 0.85 | 30 |
| G1" | M32 x 1.5 | 16 | 19.9 | 19~15 | 0.1 | 0.7 | 1.25/1.6 | 1.25 | 43 |
| G1 1/4" | M40 x 1.5 | 16 | 26.2 | 24~30 | 0.1 | 0.7 | 1.6/2.0 | 1.40 | 50 |
| G1 1/2" | M50 x 1.5 | 16 | 32.1 | 26~35 | 0.1 | 0.8 | 1.6/2.0 | 1.40 | 60 |
| G2" | M63 x 1.5 | 17 | 38.1 | 35~46.7 | 0.2 | 0.63 | 2.0/2.5 | 1.40 | 65 |
| G2 1/2" | M75 x 1.5 | 17 | 50 | 45.6~59.4 | 0.2 | 0.63 | 2.5 | 1.50 | 80 |
| G3" | M100 x 1.5 | 19 | 61.9 | 57~72.1 | 0.3 | 0.81 | 2.5 | 1.50 | 92 |
| G4" | - | 19 | 86 | 76~93 | 0.3 | 0.94 | 3.15 | 1.60 | 117 |
